In industries such as oil and gas, construction, and water treatment, the precise classification of granular materials like frac sand (proppants) and quartz sand is critical for optimizing performance and cost-efficiency. High-frequency screens, leveraging advanced vibration technology, have emerged as a cornerstone for achieving high-precision particle separation. This article explores the working principles, advantages, and applications of high-frequency screening machines, with a focus on their role in processing frac sand and quartz sand. Drawing parallels to the innovative Vibration Screens with Direct Excitation by German manufacturer Rhewum, we delve into how these machines deliver unmatched efficiency and reliability.
1. Working Principle of High Frequency Screens
High frequency screens utilize rapid vibrations to separate particles based on size, density, or shape. Unlike conventional screens, these machines employ direct excitation technology, where vibratory motors or electromagnetic drives generate controlled, high-frequency oscillations (typically 3000–3600 RPM) directly transmitted to the screen surface. This mechanism ensures minimal energy loss and maximizes screening efficiency.
- Key Components:
- Vibratory Motors/Exciters: Generate high-frequency vibrations (up to 3600 RPM) to fluidize material and enhance separation.
- Screen Decks: Multi-layered mesh panels (1~4 decks) with precise aperture sizes (e.g., 20–325 mesh for frac sand).
- Control System: Adjusts amplitude and frequency to optimize screening accuracy and throughput.
- Process Flow:
- Feeding: Raw material enters the screen via a controlled feed system.
- Stratification: Vibrations stratify particles, pushing finer grains downward.
- Separation: Particles smaller than the screen apertures pass through, while oversized material is discharged.
- Multi-Stage Classification: Multiple decks enable simultaneous grading into multiple fractions.
2. Applications in Frac Sand and Quartz Sand Processing
Frac Sand (Proppants):
Used in hydraulic fracturing, frac sand must meet strict size (e.g., 20/40, 30/50 mesh) and sphericity standards. High-frequency screens ensure:
- High Purity: Removal of undersized dust and oversized grains to enhance proppant conductivity.
- Efficiency: Throughput rates up to 500 tons/hour, reducing processing time.

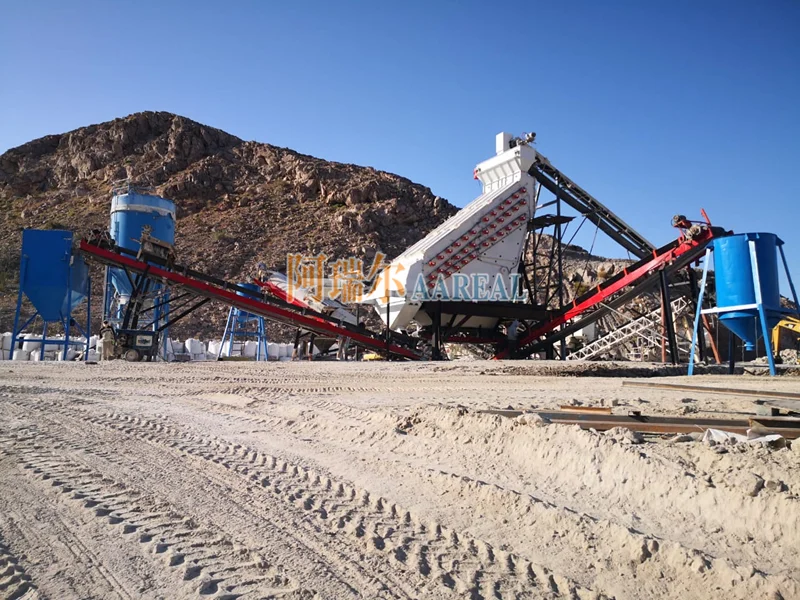

Кварцевый песок:
In glass manufacturing and water filtration, quartz sand requires uniform particle distribution (e.g., 40–70 mesh). High-frequency screens provide:
- Consistent Grading: Eliminates impurities and ensures ≤1% deviation in particle size.
- Durability: Wear-resistant polyurethane screens withstand abrasive quartz particles.
3. Technological Advantages Over Conventional Screens
- Precision: Direct excitation minimizes vibration dissipation, enabling sharper separations.
- Energy Efficiency: 30–50% lower power consumption compared to circular or linear vibrating sieve.
- Compact Design: Reduced footprint suits modular plant layouts.
- Low Maintenance: Fewer moving parts and easy screen replacement reduce downtime.
4. Comparison with Rhewum’s Direct Excitation Technology
AAREAL high frequency screen share core principles with Rhewum’s screens, including:
- Resonance-Free Vibration: Direct excitation eliminates mechanical linkages, enhancing reliability.
- Adjustable Amplitude/Frequency: Tailored settings for diverse materials (e.g., sticky ores vs. dry sands).
- High Capacity: Scalable designs handle feed rates up to 1,000 t/h, ideal for large-scale operations.
When comparing high frequency screens to Sweco’s Gyratory Sifters for quartz sand and frac sand screening, the former offers several distinct advantages:
- Higher Screening Precision & Efficiency
High frequency screens utilize rapid vibration (up to 3600 RPM) to achieve 90-95% screening accuracy for fine particles (20–160 mesh), particularly critical for high-purity quartz sand and API-standard fracturing sand. In contrast, Gyratory Sifters rely on elliptical motion, which may struggle with ultrafine particle stratification. - Greater Throughput with Compact Design
High frequency vibratory screens process 30–40 t/h of materials in a single layer, outperforming Gyratory Sifters in unit area efficiency. Their vertical vibration mechanism allows continuous material turnover, reducing blinding risks common in 3D-motion systems. - Lower Maintenance & Energy Consumption
With simplified structures (no complex gimbal mechanisms) and rubber isolators reducing component wear, high-frequency screens cut maintenance costs by ~30% compared to gyration-based systems. Energy consumption is typically 20–40% lower due to optimized motor power utilization. - Adaptability to Harsh Conditions
These screens integrate seamlessly with washing and drying processes (e.g., sand recovery units and rotary dryers), handling wet/sticky materials more effectively. Gyratory systems often require pre-drying for optimal performance. - Automation & Process Integration
Modern high-frequency screens feature PLC-controlled vibration parameters and real-time monitoring, enabling automatic adjustments for material gradation changes—a key advantage in ISO-certified fracturing sand production lines
Conclusion
High-frequency screening machines represent a leap forward in industrial particle separation, combining precision, efficiency, and durability. By adopting technologies akin to Rhewum’s direct excitation systems, these screens are transforming frac sand and quartz sand processing across global industries. For businesses seeking to optimize their operations, investing in high frequency screen is a strategic move toward sustainability and profitability.
