Станция опрокидывания мешков

Получить цену

Описание

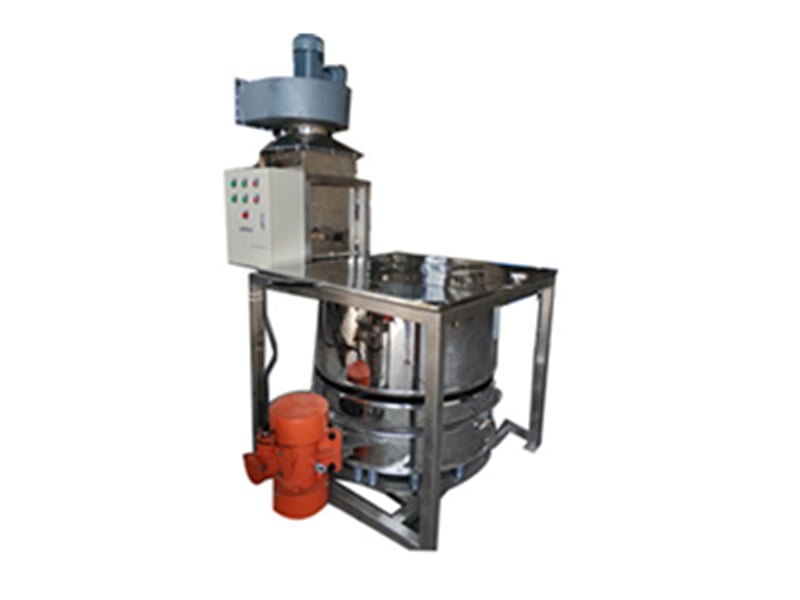

Overview of Dust-free Feeding Station:
Dust-free feeding station is also called bag dumper station, bag dump screener system, low profile bag dump, sanitary bag dump with integral dust collector etc.
The quality containment system of the bag dump screener system effectively reduces the amount of dust particles escaping into the work environment, while efficiently channelling materials from bags into the bag dumper screener system separator. The dust containment system is integrated with a high performance low profile flow-thru separator. The bag dump eliminates the need for costly and time consuming labor hours necessary to clean up spilled material by capturing airborne dust particles before they can even enter the environment.
The bag dumper screener can be supplemented with an optional integral dust collection system to eliminate virtually all harmful dust from entering the work environment.

Working Principle of Dust-free Feeding Station:
Due to the action of the dust collection fan during unpacking , the material dust can be prevented from flying everywhere. When the material is unpacked and poured into the next procedure, it is only necessary to manually unpack the material and put it into the system.
Through vibrating screen (safety screen, low-profile vibrating sieve), the bulk materials and foreign objects can be intercepted to ensure the discharge of the required particles.

Structure of Dust-free Feeding Station:
The dust-free feeding station consists of feeding platform, discharge bucket, dust removal system and vibrating screen etc.

Features of Dust-free Feeding Station:
1. Dust removal function. Prevent material producing dust when unpacking and feeding, reducing material and energy consumption.
2. The equipment adopts intelligent control. Efficient automation, simple operation, high efficiency and energy saving.
3. The interior has no dead angle design. Easy to remove and clean, and with little maintenance.
4. Minimize the loss of products. reverse blowing principle to achieve the reuse of materials. The principle of reverse blow is used to realize the reuse of material.
5. It is applicable to systems from simple to complete integration, transfering materials through a vacuum conveyor system.
6. It can be used in combination with vibrating screen, iron separator and other modules. Complete waterproof design for easy cleaning.

Application of Dust-free Feeding Station:
Dust-free feeding station is suitable for the unpacking, feeding, screening and unloading of small bag materials in pharmaceutical, chemical, food, battery materials and other industries.
It is also applicable to the feeding process of sterile bulk drug substance. The whole feeding process can effectively protect the operator and the external environment, which is in line with the requirements of GMP and FDA production.

Sanitary Bag Dump with Integral Dust Collector:
The sanitary bag dump with integral dust collector reduces worker exposure to nuisance dust. The bag dump dust collection system is designed to work exclusively with the bag dumper, a proven system used to screen material at bag unloading stations. The bag dump dust collection system improves particulate containment by providing substantial vacuum below the bag dump screen rather than above. This pulls dust down and away from the operator, greatly improving airborne particulate flow into the collection system’s filters.
Typically, customers use our low-profile separators to scalp large pieces and bag parts from bags of ingredients that go into dry and wet mixes. This new product incorporates a shelf and grate to open and unload the bag as well as an integrated dust removal system with a self-cleaning blower and cartridge filters. Additionally, a magnet can be added to remove tramp metal.
dust-free feeding and screening stationdust-free feeding and screening station
