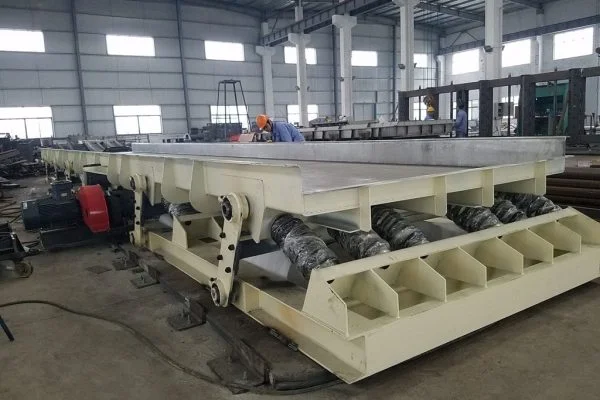

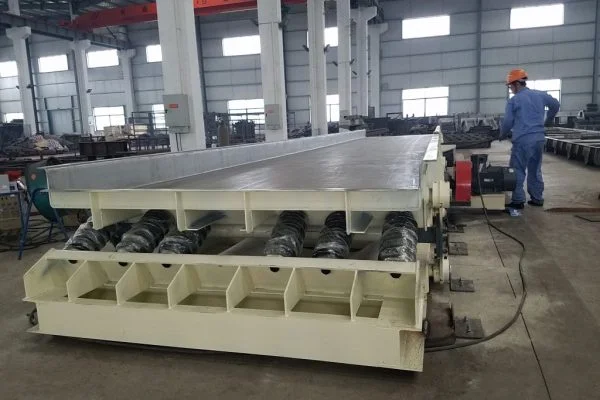

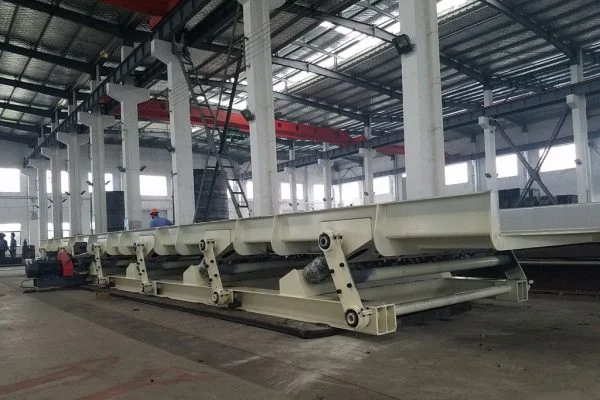

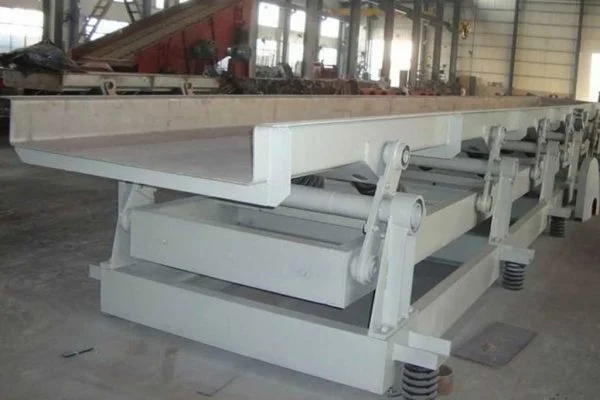

Transportador vibratorio de biela de masa única

Solicitud:

Single-mass connecting rod vibratory conveyor is suitable for power, coal, building materials, metallurgy, grain and other industries, which is used to complete the conveying process of powder and granular materials. It is suitable for fine powder materials that are difficult to transport, such as emery powder, fly ash, cement, carbon powder, coal powder etc., uniformly and continuously or quantitatively transported from the storage bin or funnel to the receiving device, which has superior conveying performance.

Características:

1. The structure is simple and compact, the lubrication point is less, and the lubrication point is not in contact with the material. No special installation requirements, therefore the installation is convenient and the maintenance workload is small.
2. The sealing performance is good when the closed type is used. Conveying dusty, toxic and volatile materials has no pollution to the environment, and it can realize multi-point feeding and multi-point discharging.
3. Due to the use of the resonance principle of mechanical vibration, the installation foundation is regarded as one of the mass points, the power consumption is low, and the power consumption is less than half of the screw conveyor with the same conveying length and productivity.
4. Because the material jumps forward with the parabolic trajectory during the transportation process, the conveyor trough wears slightly, and the service life is more than three times higher than that of the screw conveyor.
5. The operating noise is not greater than 75dB.
6. It can start frequently and operate continuously under the rated amplitude condition.
7. It is suitable for conveying requirements of longer distance and wider trough width.

Ventajas:

1. High stiffness and simple structure, suitable for long distance and quick conveying.
2. The total height is low and suitable for limited space.
3. Multiple application can be achieved easily.
4. Single unit of conveyor length can reach 25 meters, and has been proved to be feasible.
5. Highly reliable, easier maintenance and lower cost.

Estructura:

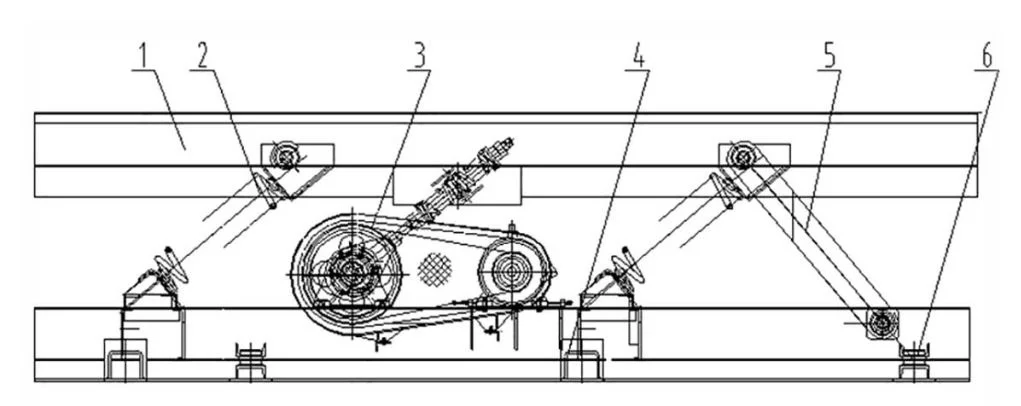

1. conveyor trough 2. main vibration springs 3. drive connecting rod mechanism 4. base 5. guide rod 6. auxiliary support.

Principio de funcionamiento:

The driving connecting rod mechanism is composed of a motor, a pulley, a transmission shaft and an eccentric connecting rod device. The conveyor trough and the bottom frame are connected with a coil spring, which is the main vibration spring. The guide rod guides the vibration of the conveyor trough. During the operation of the conveyor, the driving mechanism makes the end of the connecting rod do reciprocating motion, and the connecting rod drives the conveyor trough to do reciprocating motion through the coil spring of its end, so that the material is continuously thrown up along the direction of vibration and jumps forward to achieve the purpose of conveying the material.

Parámetros técnicos:

Nota:

• Los datos anteriores son sólo para referencia. Nuestra empresa se reserva el derecho de modificar los datos anteriores.
• La capacidad de transporte aquí se calcula en función del transporte horizontal de arena de río (densidad aparente 1,6 t/m³, contenido de agua 5%).
• Es necesario volver a calcular la potencia de la cubeta de transporte con tapa de sellado, placa de revestimiento y materiales de transporte con diferentes densidades aparentes.
• Cuando la distancia de transporte supera los 15 metros, adoptaremos la estructura segmentada y el usuario deberá ensamblarla y conectarla en el sitio.
