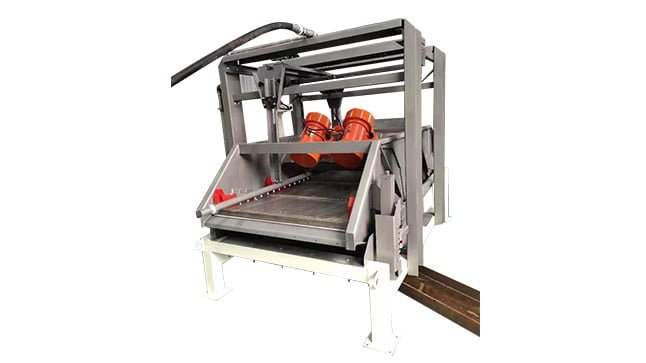

Multi-motion rectangular separator is specially designed by AAREAL for solid-liquid separation. It can meet the majority of sewage and wastewater treatment and tailings applications. It has the advantages of high vibration intensity, large screening area, adjustable screen box angle, compact structure and excellent performance.

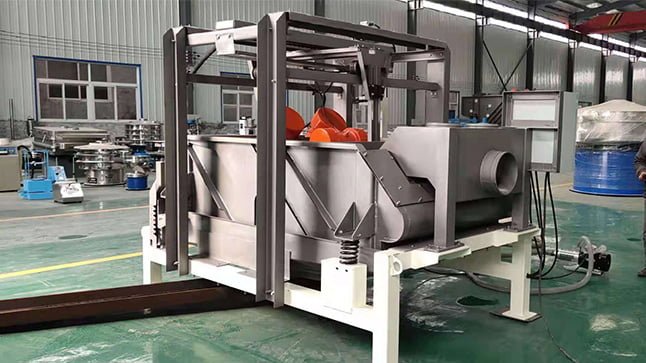

The revolutionary dual motion mode includes both elliptical and linear motion. This innovative design allows the operator to switch between two motion modes directly during the operation of the machine to meet the screening requirements of different materials, isolate solids and liquids, separate solid particles with different sizes, and remove other impurities.
Características:

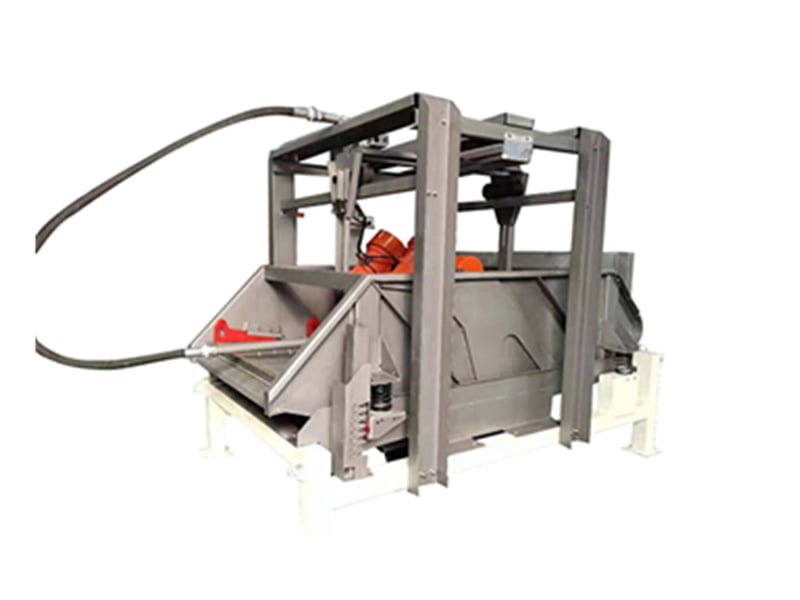

1. Equipped with three vibrating motors, providing linear and elliptical motion modes. The elliptical motion is more gentle, longer service life of screen and good screening effect; the solid conveying capacity of linear motion is high, and the processing capacity is large. The movement mode can be switched during operation to meet the screening requirements of different materials.
2. The equipment has low noise. The noise of 1 meter away from the vibrating screen is ≤75 decibels.
3. The screen is fixed to a wedge-shaped block and pressed tightly. To replace the screen plate, just knock out the wedge-shaped block and press it in again after replacement, which is simple and convenient.
4. The inclination of the screen is adjustable, and the middle section of the screen can form a vortex state, which is more conducive to classification.
5. Using automatic spray system, and can set timing spray interval (optional).
6. The machine can be made up to 3 layers of screen, and filtration up to 25μm.
Advantages of Compound Motion:
| Linear Motion | Elliptical Motion |
|
|
Principio de funcionamiento:
The dual motion rectangular separator is equipped with three vibration motors, which provide two motion modes: linear motion and elliptical motion. The rectangular wet screening machine is driven by a vibration motor installed on the frame beam. The vibration is transmitted to the sieve plate, and the material to be sieved is released to the sieve plate through the pipe inserted into the dual motion rectangular separator. The vibration of the sieve plate makes the smaller particle size (qualified particle size) pass through the sieve plate and enter the sieve bottom, and enters the next process through the pipeline installed at the bottom of the sieve. The material with larger particle size (unqualified particle size) stays on the upper part of the sieve plate, enters the groove at the front of the vibrating screen, and enters the next process through the pipe installed at the bottom of the groove.
The linear motion can generate 6G gravity acceleration, the elliptical motion can generate 5G gravity acceleration. People can choose the movement mode of the vibrating screen through the switch in the control box. The elliptical motion is more gentle, and the screen service life is longer. The solid conveying capacity of the linear motion is high.
Parámetros técnicos:
| Modelo | AES68-3 | AES63-3 | AES60-3 |
| Vibration Trajectory | Ellipse | Ellipse | Ellipse |
| Motor Power | 2*2.2KW 1*0.75KW | 2*1.5KW 1*0.55KW | 2*1.1KW 1*0.25KW |
| Vibration Intensity | ≤7.0 G | ≤7.0 G | ≤6.5 G |
| Amplitud | 5.5~6.0 mm | 5.5~6.0 mm | 5.5~6.0 mm |
| Capacity of Single Screen | ≤110m³/h 615 GPM | ≤90m³/h 528 GPM | ≤70m³/h 352 GPM |
| Adjustment Angle of Screen Box | -3°~3° | -3°~3° | -3°~3° |
| Motor Frequency and Voltage | 380V/50HZ, 460V/60HZ | ||
| Área de la pantalla | 2.5 m² | 2.3 m² | 1.8 m² |
| Tamaño de pantalla | 680*1250mm (40~250 mesh) | 630*1250mm (40~250 mesh) | 600*1050mm (40~250 mesh) |
| Capas de pantalla | 1~2 | 1~2 | 1~2 |
| Quantity of Single Layer Screen | 4 | 4 | 4 |
| Mobile Sprinkler System | Optional | Optional | 1 set. The water pressure is about 5 KG and flow at 290 L/H |
| Peso | 1880 kg | 1680 kg | 1300 kg |
| Remarks | The single screen processing capacity refers to the slurry specific gravity 1.2g/cm3, and the viscosity is 45s | ||
The dual motion rectangular separator adopts automatic spraying system. The spraying water pressure is about 5 KG and the flow rate is 290 L/H. The operator can set the timed spray interval, which can effectively extend the downtime interval and reduce the waste of paint without affecting the paint concentration.
Solicitud:
It is used for papermaking, non-ferrous metals, metallurgy, building materials, chemical, refractory, cement, ceramic, grain, food, drilling mud purification system and other special solid-liquid separation equipments.
