Overview of Electromagnetic Vibrating Feeder:

El alimentador de vibración electromagnética también se llama alimentador accionado por vibración magnética, alimentador actuado, alimentador vibratorio de accionamiento electromagnético. Impulsado por un excitador de vibración electromagnética, se usa ampliamente para la alimentación de material en polvo y granular, el procesamiento por lotes y el envasado automático cuantitativo y otros procesos de producción.

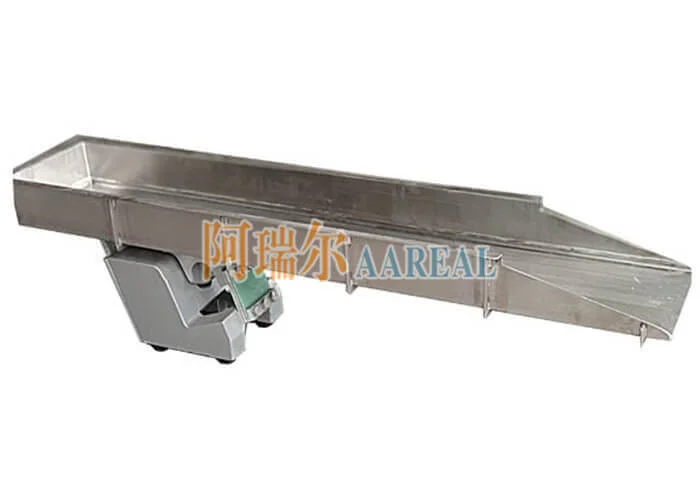

Miniature Seat Type Electromagnetic Vibrating Feeder

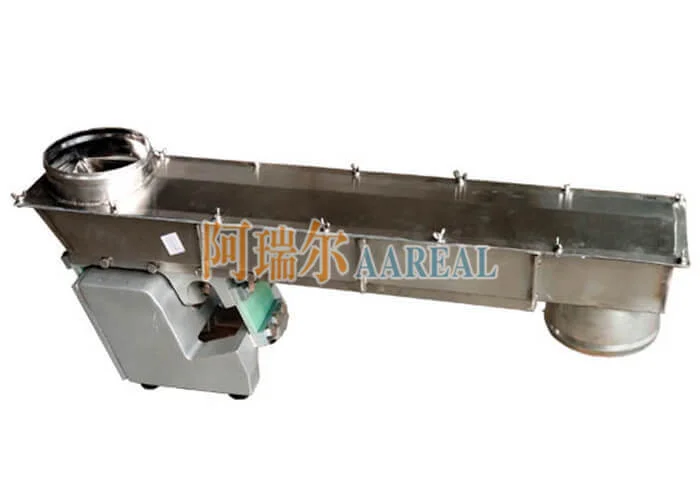

Miniature Seat Type Electromagnetic Vibrating Feeder

Working Principle of Electromagnetic Vibrating Feeder:

  Electromagnetic vibrating feeder adopts a linear groove reciprocating type. It is composed of trough, electromagnetic vibration exciter and shock absorber. The material can be screened without direction. The electric control adopts the semi-wave rectifier circuit, which is completely not equipped with rotating parts. And it uses the principle of micro-throwing motion to feed the material.

  Con la caja de control de estabilización de amplitud automática, no puede verse afectada por la fluctuación de voltaje de la fuente de alimentación y mejorar la precisión de la alimentación.

  En comparación con otros tipos de comedero, tiene las características de tamaño pequeño, peso ligero, estructura simple, bajo consumo de energía y ajuste continuo de la cantidad de alimentación.

Application of Electromagnetic Vibrating Feeder:

Electromagnetic vibration feeder is widely used in light industry, chemical industry, grain processing, commercial and other industries, for powder and granular material feeding, batching and quantitative automatic packaging and other production processes. And it can realize centralized control and automatic control.

Features of Electromagnetic Vibrating Feeder:

1. The feeding process is completely automatic. The slot wear is small, and the machine is easy to maintain.

2. It can transport high temperature, serious abrasion and corrosive materials.

3. The control box can realize manual and automatic adjustment. Just put it on the workbench at work.

4. It can be added 1~2 layer of screens to the feed trough so as to use it as a small vibrating screen equipment.

5. The minimum voltage of 220V can be applied. And it can be used when voltage is extremely unstable.

6. It is small in size and light in weight. It is configured according to different specifications. The minimum weight can be as low as 4 kilograms.

7. The vibration frequency is stable. The vibration force is 3000, and the double amplitude is 1.5mm. The effective power of the product can reach 50W. Energy saving, high operational safety performance.

ttécnico PAGarameter of Electromagnetic Vibrating Feeder:

ModeloMVF1MVF2MVF3MVF4MVF5MVF6
Capacidad (t/h)0.10.51246
Doble amplitud (mm)1.5
Vibration Frequency (r/min)3000
Potencia efectiva (W)5820253050
Peso (kg)4712182745
Control DeviceMétodo de controlRectificación controlable de media onda
Voltaje de suministro220V
Frecuencia50HZ
Corriente (A)0.100.150.200.300.350.80
Nota: Production capacity is calculated according to the material volume weight 1.6t/m3

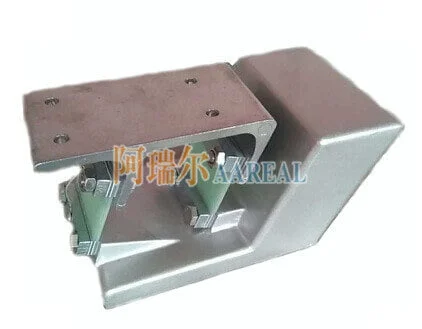

Miniature Seat Type Electromagnetic Vibrating Feeder

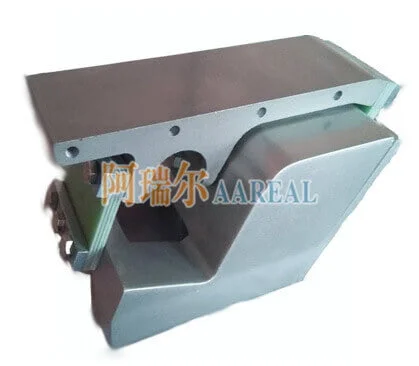

Miniature Seat Type Electromagnetic Vibrating Feeder
Miniature Seat Type Electromagnetic Vibrating Feeder
Miniature Seat Type Electromagnetic Vibrating Feeder
