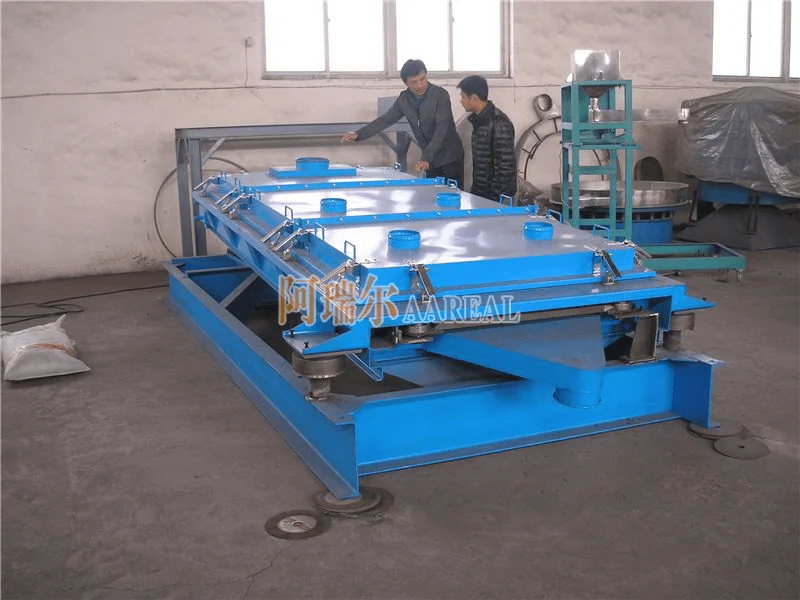

Criba giratoria para arena de sílice

mayo 25, 2024
Por venta@aarealmachine.com

Descripción general:

Gyratory screen is also called Rotex pantalla giratoria, Rotex screen, Rotex vibrating screen, pantalla giratoriaer, gyratory separator, tamiz giratorio, pantalla giratoriaing machine, planar rotary screen, plane rotary screen, rotary flat sieve, flat screen, square precision screening machine, reciprocating screen etc. Driven by an ordinary motor, this screening machine drives the eccentric wheel to do gyratory reciprocating motion. It is often used for screening petroleum coke, activated carbon, quartz sand, silica sand, frac sand, precoated sand, urea, fertilizer, resin, glass bead, wood pellet, sodium carbonate, melamine, tea, sugar, salt, soybean etc.

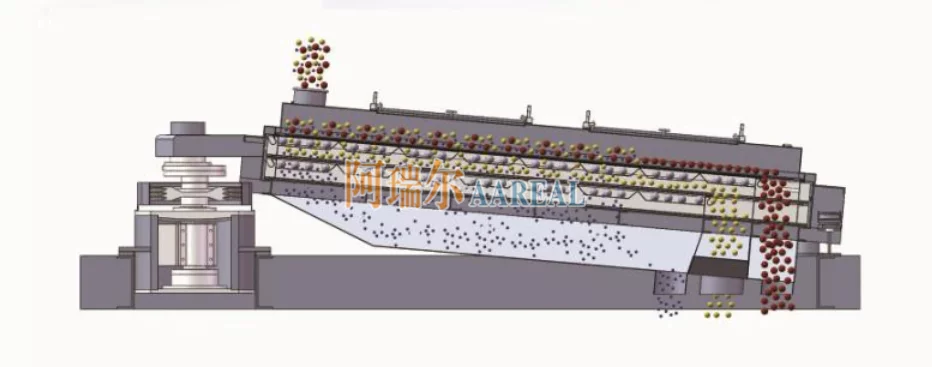

Principio de funcionamiento:

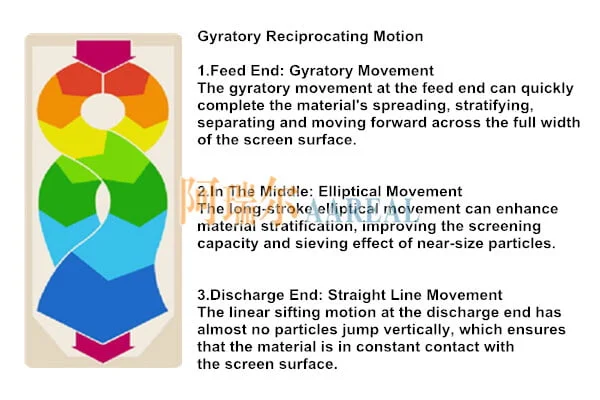

The gyratory reciprocating motion of Rotex gyratory screen begins with a circular motion at the feed end, gradually diminishing along the length of the machine to elliptical movement in the middle, and finally to an almost straight-line motion at the discharge end.

Parámetros técnicos:

Capas	Modelo	Screen Surface Size (*WL) (mm)**	Screen Box Stroke (mm)	METROotor		Peso(kg)
Capas	Modelo	Screen Surface Size (*WL) (mm)**	Screen Box Stroke (mm)	Power(kw)	Speed (rpm)	Peso(kg)
1	1014	1000*1400	63.5	1.5	960	715
	1021	1000*2100	63.5	1.5	960	980
	1030	1000*3000	63.5	1.5	960	1200
	1521	1500*2100	63.5	1.5	960	1380
	1530	1500*3000	76	2.2	960	1340
	1536	1500*3600	76	5.5	960	2410
2	1236	1200*3600	76	5.5	960	2020
	1021	1000*2100	63.5	1.5	960	1400
	1030	1000*3000	76	4	960	1840
	1521	1500*2100	63.5	4	960	1710
	1836	1800*3600	76	7.5	960	3880
	1530	1500*3000	76	7.5	960	2780
	1536	1500*3600	76	7.5	960	3180
3	1021	1000*2100	63.5	5.5	960	2150
	1530	1500*3000	76	5.5	960	3200
	1836	1800*3600	76	7.5	960	4170
	2050	2000*5000	92	11	960	5500

Ventajas:

1. movimiento alternativo giratorio único
2. automatic screen surface tension device
3. sistema de limpieza de bolas
4. sistema de motor de doble equilibrio
5. convenient and quick compensating clamps for head cover

Características:

1.Super large capacity and high screening accuracy, suitable for industrial continuous screening.

2.The effect of anti-clogging screen mesh blinding is good. Especially suitable for the screening of materials which are easy plugging and sticking the screen mesh.

3.Screen service life is long. It is 5~100 times than the ordinary vibrating screen.

4.The soft running does not damage the particles original structure of the material.

5.Three types of screen tensioning spring clips and screen side-pull mode. Easy to remove and replace the screen.

6.It is not easy to generate static electricity, especially suitable for the screening of materials those are flammable and explosive, and easy to generate static electricity.

7.Smooth operation, no special requirement for the plant.

8.Totally enclosed structure, no dust, low noise to 70 decibels.

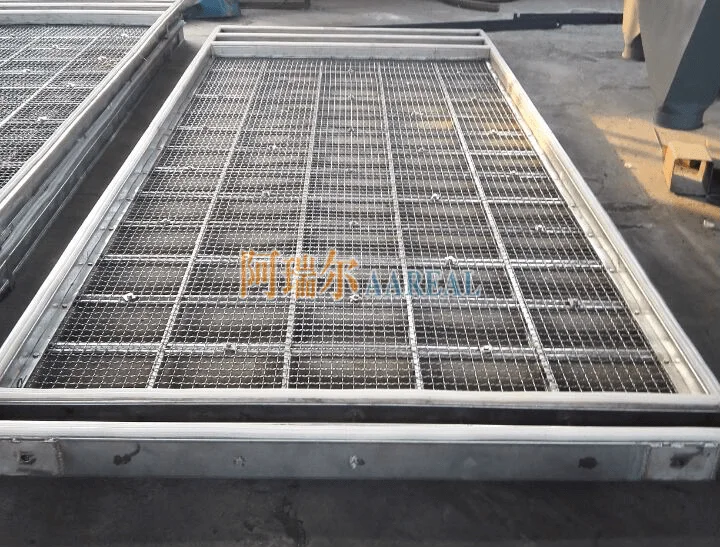

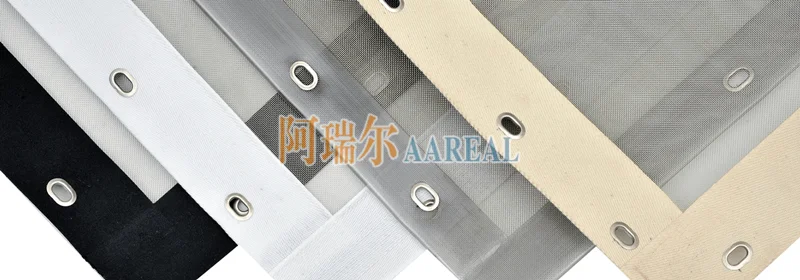

Pantalla de malla

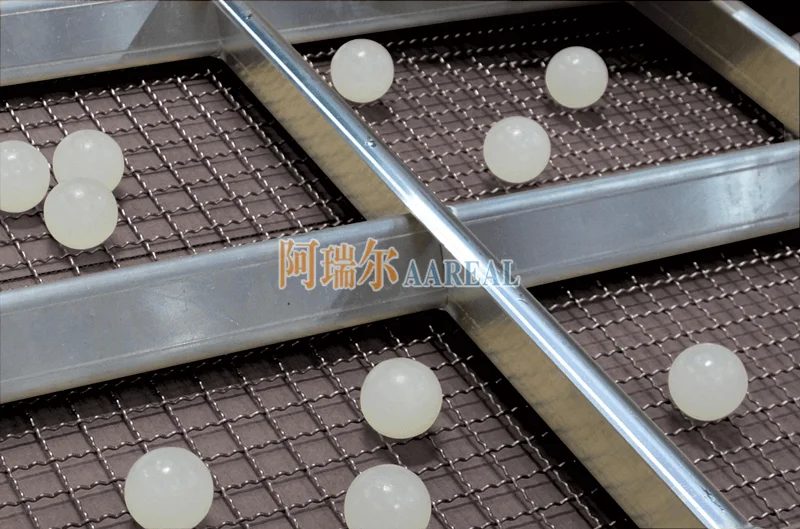

Bolas de limpieza de malla

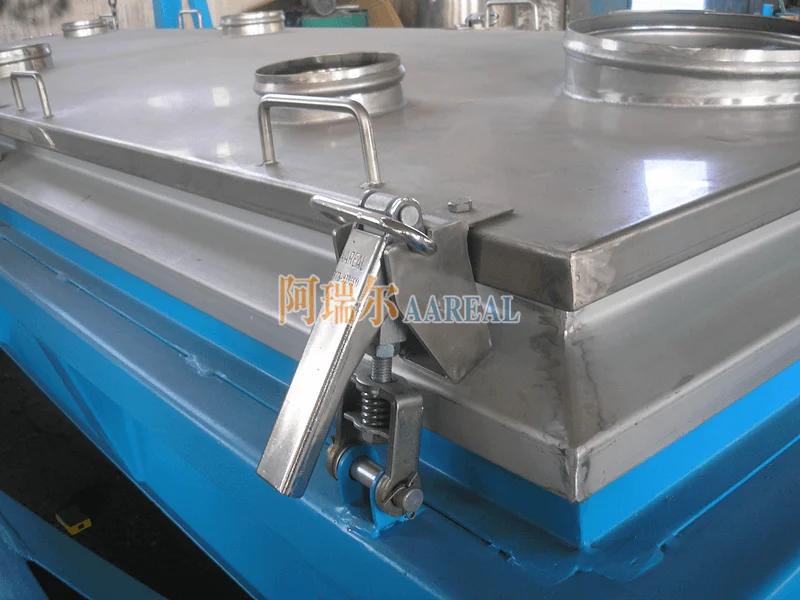

Abrazaderas Compensadoras

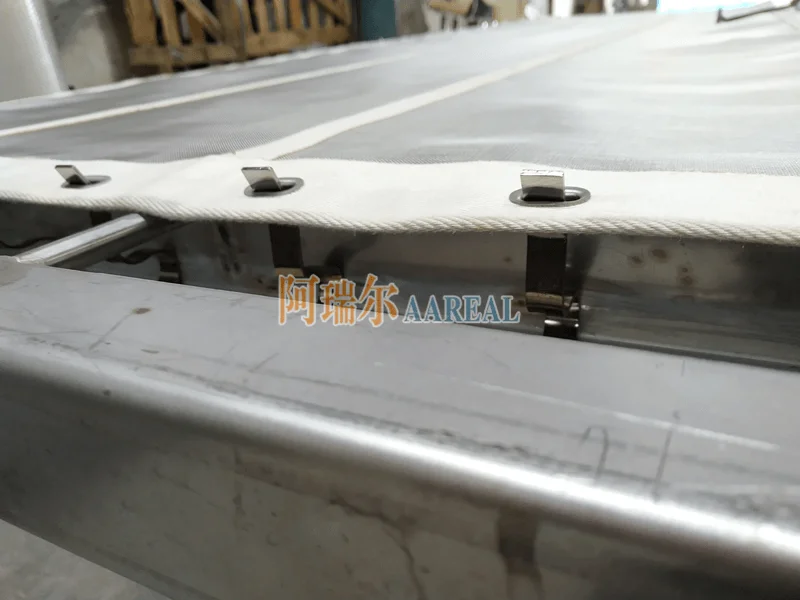

Cribas tensadas automáticamente

Marco de pantalla de metal, resistente y duradero.

Installation:

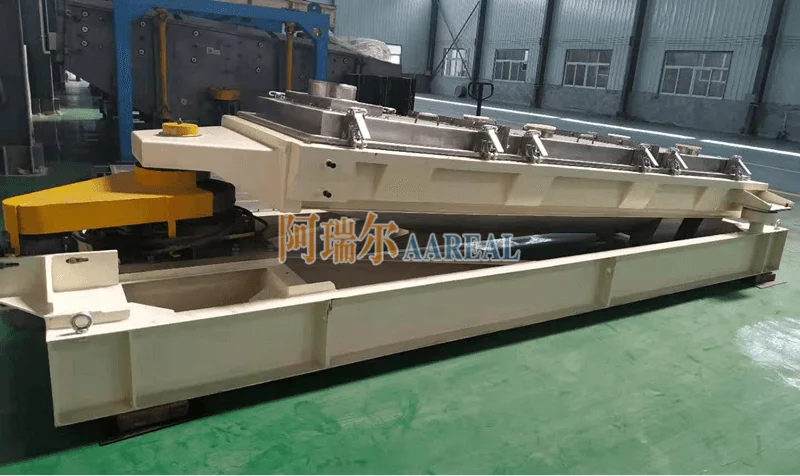

1. Instalación del asiento:

Tipo de avance

Tipo de descarga directa

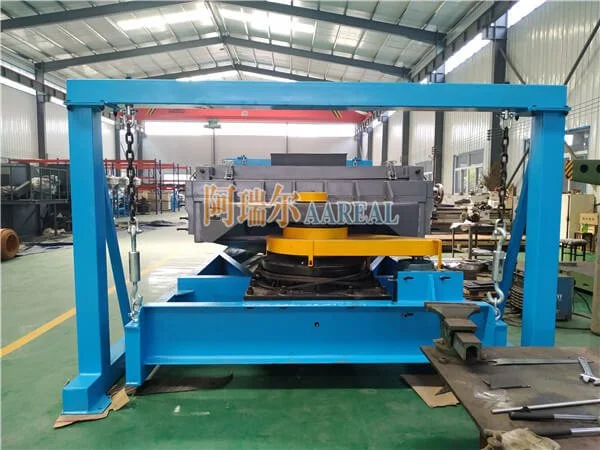

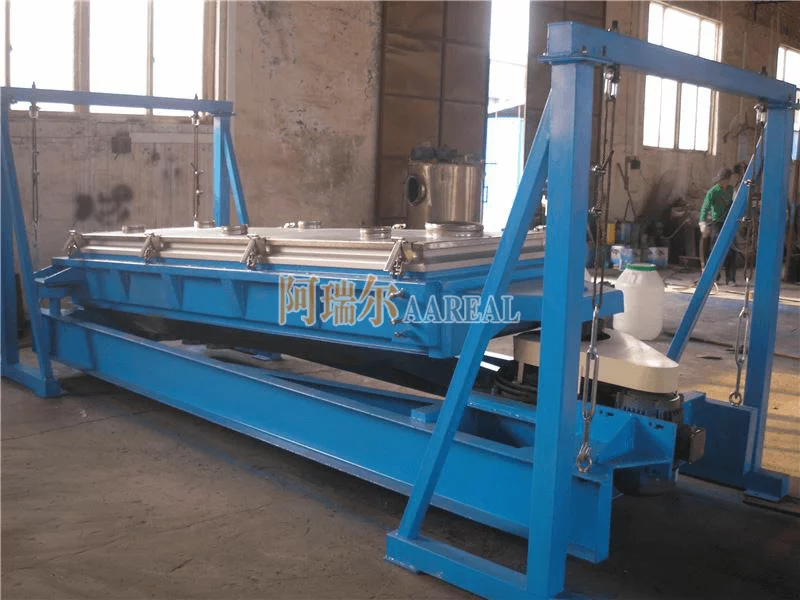

2. Instalación de suspensión de cables:

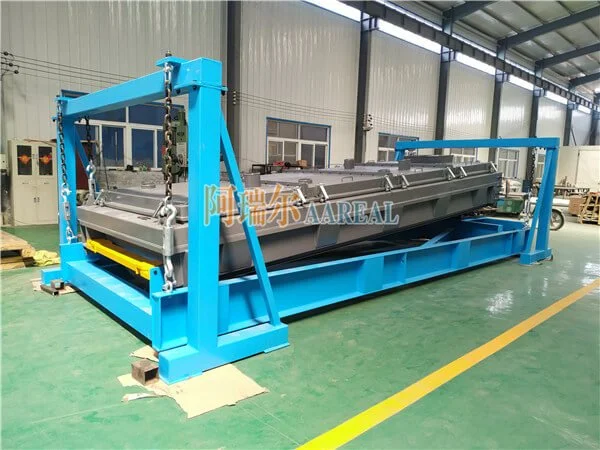

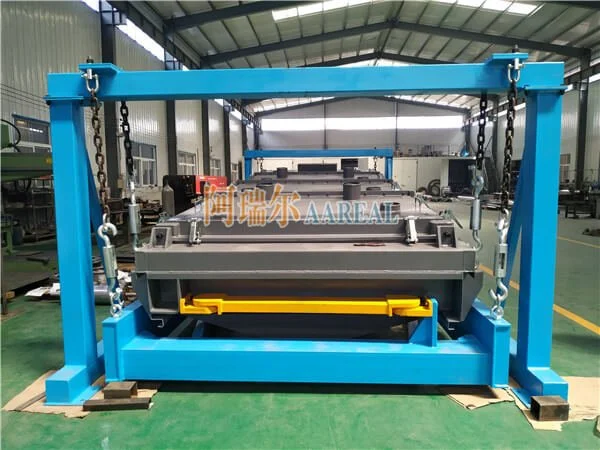

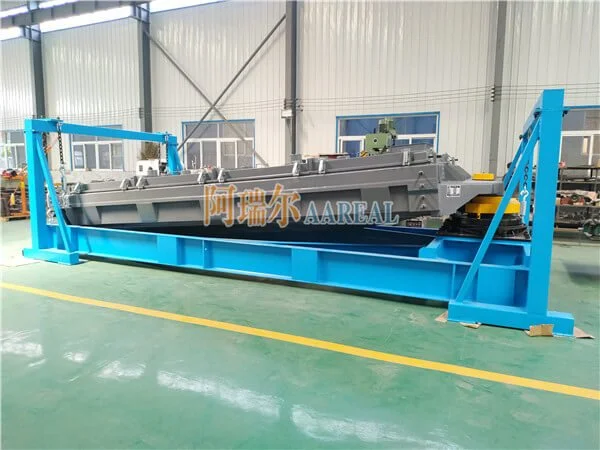

Tipo de suspensión

Solicitud:
Abrasivo: perlas de vidrio, escoria, alúmina, arena y otros materiales abrasivos
Alimentación animal: pienso en polvo y patatas fritas, pasta de carne y comida pequeña
Productos de carbono: Carbón coquizable, grafito, carbón vegetal, etc.
Productos químicos: cientos de compuestos diferentes
Arcilla: clasificación del producto
Fertilizante: raw material sieving and finished product fine screening.
Incluyendo nitrato de amonio, fosfato, hidróxido de potasio, urea y otros compuestos.
Alimento: sugar, flour, milk powder, coffee, cereals, rice, nuts, condiments, cocoa powder, glucose, starch etc.
Grain cleaning: corn, wheat, soybean and other cereals peeling and cleaning
Ore: ore, rubble, limestone, soda ash and salt
Papel: pulpa de papel, recubrimiento
Fibra vulcanizada: astillas de madera, escamas, trozos de madera, para fabricar tableros de fibra de alta calidad
Droga: many large drug manufacturers use our screening machines, which meet the health standard design and GMP, to achieve precise and effectiveseparation and cleaning
El plastico: partículas de plástico, polvo de plástico
Metal en polvo: aluminum, copper, iron, nickel, steel, zinc and many other metal powders
Recycling of resources: used in the recycling of various materials, such as PET recycling etc.
Steel-making: clasificación de perdigones de acero y limaduras de metales
